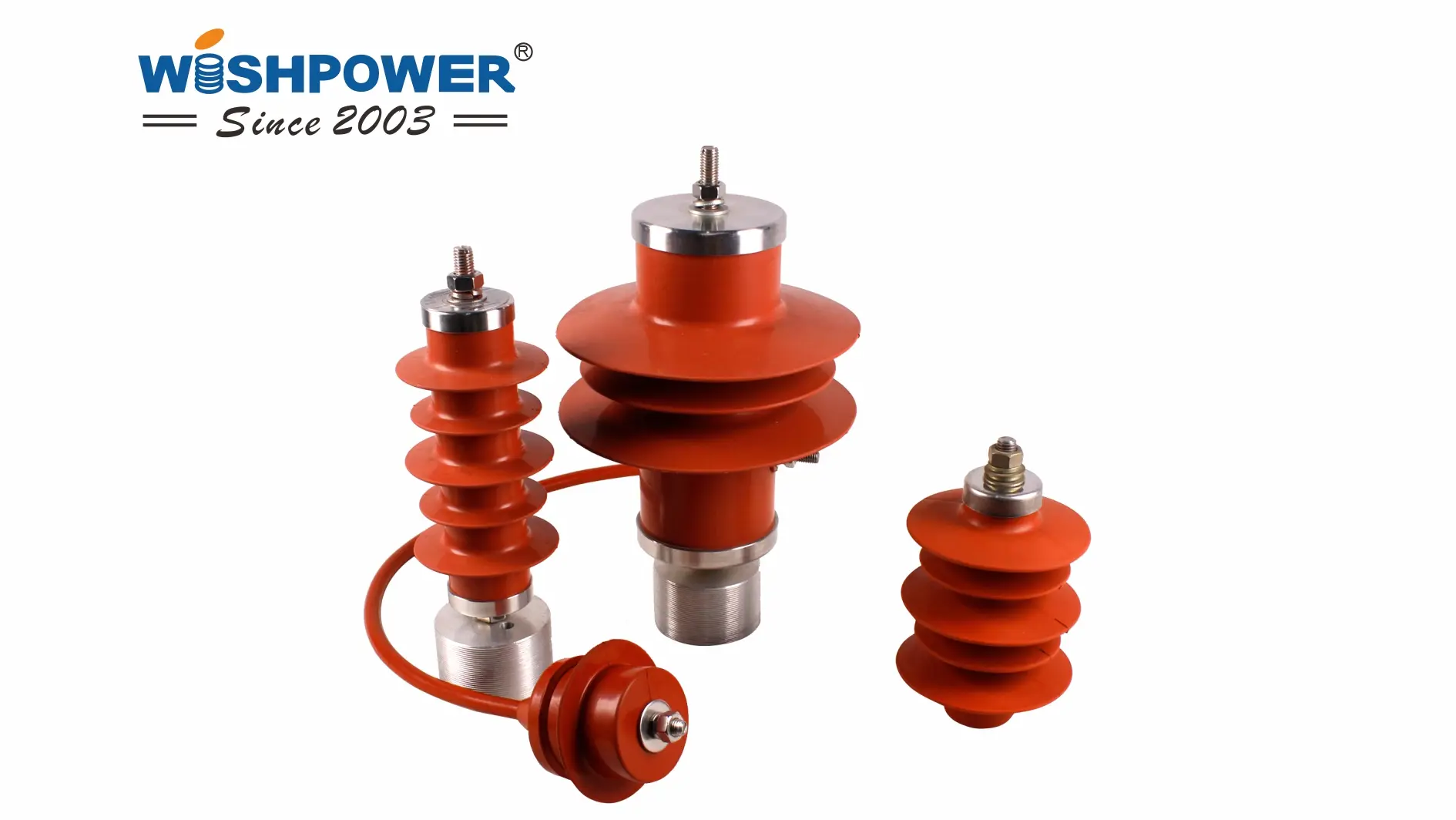

2.4kV DC Composite Housed Metal Oxide Surge Arrester for Urban Rail Transit

A: Composite insulators are widely used in modern power transmission and distribution systems because of their lightweight structure, high mechanical strength, good pollution resistance, and excellent hydrophobic performance. Compared with traditional porcelain and glass insulators, composite insulators offer many advantages, especially in coastal areas, polluted regions, high-voltage lines, and difficult installation environments.However, composite insulators also have some disadvantages. Understanding these limitations is important for engineers, utilities, project contractors, and buyers when selecting the right insulator for power systems.1. Aging of Polymer MaterialsOne of the main disadvantages of composite insulators is the aging of polymer materials. The outer housing of a composite insulator is usually made of silicone rubber or EPDM. These materials are exposed to ultraviolet radiation, rain, temperature changes, pollution, salt fog, and electrical stress for many years.Over time, the polymer surface may experience aging, hardening, cracking, chalking, erosion, or loss of hydrophobicity. Once the outer housing deteriorates, the insulation performance of the composite insulator may be affected.Although high-quality silicone rubber can provide long service life, poor material quality or harsh operating conditions may accelerate aging.2. Risk of Interface DefectsComposite insulators are made from different materials, including a fiberglass core, polymer housing, and metal end fittings. Because of this multi-material structure, the interfaces between different parts are very important.If the bonding between the fiberglass core and polymer housing is not reliable, moisture may enter the internal structure. This can lead to internal discharge, tracking, corrosion of the core, or even mechanical failure.Interface defects are not always easy to detect during routine inspection, which makes quality control during manufacturing especially important.3. Possible Brittle Fracture of the CoreThe fiberglass reinforced core provides the main mechanical strength of a composite insulator. However, under certain severe conditions, the core may suffer from brittle fracture.Brittle fracture can be caused by long-term mechanical stress, moisture penetration, chemical corrosion, acid attack, or poor end fitting sealing. This type of failure may occur suddenly and can create serious risks for transmission line operation.Although this problem is not common in high-quality composite insulators, it remains one of the key technical concerns in the power industry.4. More Difficult Visual InspectionPorcelain and glass insulators often show obvious visible signs when they are damaged, such as cracks, broken pieces, or shattered discs. Composite insulators, however, may have hidden internal defects that are not easy to identify from the outside.For example, internal core damage, interface moisture penetration, or bonding defects may not be visible during simple visual inspection. This makes condition assessment more challenging and may require professional inspection methods such as infrared detection, ultrasonic testing, electric field measurement, or hydrophobicity testing.5. Sensitivity to Manufacturing QualityThe performance of composite insulators depends heavily on manufacturing quality. Material selection, silicone rubber formulation, fiberglass core quality, crimping process, sealing design, and bonding technology all affect long-term reliability.Low-quality composite insulators may suffer from poor aging resistance, weak sealing, reduced mechanical strength, or early surface degradation. For this reason, buyers should choose reliable manufacturers with strict quality control and proven production experience.6. Limited Long-Term Operating Experience Compared with PorcelainPorcelain insulators have been used in power systems for more than a century, and their long-term performance is well understood. Composite insulators are newer compared with porcelain and glass insulators.Although composite insulators have been widely adopted and have shown strong performance, some utilities may still be cautious in extremely high-voltage or critical applications because long-term aging behavior depends on material quality and service environment.This does not mean composite insulators are unreliable, but it does mean that product selection, testing, and supplier evaluation are very important.7. Surface Erosion and Tracking RiskComposite insulators are usually designed with excellent resistance to tracking and erosion. However, in heavily polluted areas, coastal regions, desert environments, or places with strong electrical stress, the surface may still suffer from erosion or tracking over time.If the surface damage becomes serious, it may reduce creepage distance, weaken insulation performance, and increase the risk of flashover. Proper shed design, high-quality silicone rubber, and regular inspection can help reduce this risk.8. Higher Initial Cost in Some ApplicationsComposite insulators are often cost-effective over their full lifecycle because they are lightweight, easy to install, and require less maintenance. However, their initial purchase cost may be higher than some traditional porcelain insulators, especially when high-performance materials and advanced manufacturing processes are required.For projects with very limited budgets, the initial price difference may become an important factor. However, lifecycle cost should be considered together with installation, maintenance, transportation, and outage costs.9. Vulnerability to Mechanical Damage During HandlingAlthough composite insulators are lightweight and strong, improper handling during transportation, storage, or installation may damage the silicone rubber housing or end fitting sealing area.Cuts, scratches, punctures, or improper lifting methods may affect the protective housing and reduce long-term reliability. Therefore, composite insulators should be handled carefully according to installation and transportation guidelines.10. Special Requirements for Testing and MaintenanceComposite insulators usually require less routine cleaning than porcelain insulators, but their condition assessment may require more specialized testing methods.Utilities may need to evaluate hydrophobicity, surface aging, erosion, leakage current, temperature abnormalities, and internal defects. This requires trained personnel and suitable inspection equipment.For large power networks, establishing proper inspection standards for composite insulators is important for safe operation.How to Reduce the Disadvantages of Composite InsulatorsMany disadvantages of composite insulators can be reduced through proper product selection, quality control, installation, and maintenance.Choose composite insulators from reliable manufacturers with proven experience.Use high-quality silicone rubber with strong aging, tracking, and erosion resistance.Ensure excellent sealing between the housing, core, and end fittings.Select the correct creepage distance according to pollution level and operating environment.Avoid mechanical damage during transportation, storage, and installation.Carry out regular inspection in harsh environments.Use proper testing methods for aging, hydrophobicity, and internal defects.ConclusionComposite insulators offer many advantages, including lightweight design, strong mechanical performance, excellent pollution resistance, good hydrophobic properties, and lower maintenance requirements. However, they also have disadvantages such as polymer aging, interface defects, possible core fracture, difficult inspection, manufacturing quality sensitivity, and surface erosion risk.The disadvantages of composite insulators do not mean they are unsuitable for power systems. Instead, they show the importance of choosing high-quality products, using proper installation methods, and applying regular inspection standards.For transmission lines, substations, railway electrification systems, and harsh operating environments, composite insulators remain an important and effective insulation solution when properly selected and maintained.

A: Suspension Insulators vs. Strain Insulators: What Is the Difference?Insulators play an essential role in power transmission and distribution systems. They support electrical conductors, maintain safe electrical clearance, and prevent current leakage between conductors and supporting structures. Among different types of high-voltage insulators, suspension insulators and strain insulators are two commonly used products in overhead power lines.What Is a Suspension Insulator?A suspension insulator is made up of one or more insulator units connected in series to form an insulator string. The string is usually suspended from the crossarm of a transmission tower, and the conductor is attached to the lower end of the insulator string.The main function of a suspension insulator is to support the conductor while providing electrical insulation between the live conductor and the grounded tower or pole structure. Suspension insulators are widely used in high-voltage transmission lines because the number of insulator units can be adjusted according to the voltage level and insulation requirements.What Is a Strain Insulator?A strain insulator is designed to withstand the mechanical tension of conductors in transmission and distribution lines. It is usually installed at locations where the conductor is under high tensile stress, such as line terminals, angle towers, dead-end structures, long spans, and river crossings.Unlike suspension insulators, strain insulators are often installed parallel to the conductor. Their main purpose is to bear the pulling force of the conductor while maintaining electrical insulation. They help prevent excessive conductor sag and ensure the mechanical stability of the power line.Suspension Insulators vs. Strain Insulators1. Mechanical Function and Load HandlingThe main difference between suspension insulators and strain insulators lies in their mechanical function.Suspension insulators mainly support the vertical load of the conductor. The conductor is suspended from the insulator string, and the insulator provides both mechanical support and electrical insulation. Suspension insulators are suitable for straight-line sections where the mechanical tension is relatively moderate.Strain insulators are designed to handle high tensile loads. They are used where conductors experience strong mechanical tension, such as at the end of a line, at corners, or across long spans. These insulators help maintain proper conductor tension and prevent line instability caused by sagging or excessive mechanical stress.2. Design and ConfigurationSuspension insulators usually consist of several disc-shaped units made from porcelain, glass, or composite materials. These units are connected in series to form a vertical string. The insulation level can be increased by adding more discs, making suspension insulators suitable for different voltage levels.Strain insulators may use similar disc units, but their arrangement is different. They are usually installed horizontally or in a tension configuration so that they can withstand pulling forces along the conductor direction. Depending on the mechanical load, a strain insulator assembly may include one or more parallel strings to provide sufficient tensile strength.3. Electrical PerformanceSuspension insulators provide excellent electrical insulation because they are arranged in series and maintain sufficient creepage distance and clearance. They help prevent current leakage from the conductor to the tower or pole, even under high-voltage operating conditions.Strain insulators also provide reliable electrical insulation while bearing strong mechanical loads. In high-voltage and harsh environmental conditions, strain insulators may be used together with additional insulation measures to ensure stable electrical performance, especially in polluted, coastal, or severe weather areas.4. Applications and Use CasesSuspension insulators are commonly used in straight sections of high-voltage transmission lines. They are suitable for areas where the line direction does not change significantly and where mechanical tension is not the main concern. They are also used in distribution systems in both urban and rural networks.Strain insulators are used in locations where mechanical stress is high. Typical applications include terminal towers, angle towers, dead-end structures, line bends, long-span crossings, river crossings, and areas with strong wind or ice loads. They are essential for maintaining conductor tension and ensuring the mechanical stability of overhead power lines.What Is the Difference Between Suspension and Strain Insulators?Suspension insulators and strain insulators differ mainly in their mechanical roles. Suspension insulators are used to support the vertical load of conductors and provide electrical insulation in straight-line sections. Strain insulators are designed to withstand high mechanical tension and are used at line terminals, corners, long spans, and other high-stress locations.Both suspension insulators and strain insulators are important components in overhead power transmission and distribution systems. Suspension insulators provide flexible conductor support and reliable insulation in straight-line sections, while strain insulators maintain conductor tension and stability in high-stress areas. Choosing the right insulator type depends on the line structure, voltage level, mechanical load, span length, environmental conditions, and installation requirements.

A: Benefits of Dry-Type TransformersDry-type transformers are widely used in commercial, industrial, public, and renewable energy applications because they are safe, efficient, environmentally friendly, and cost-effective. Unlike oil-filled transformers, dry-type transformers do not use insulating oil or other liquid cooling media, which helps reduce risks such as oil leakage, fire hazards, and environmental contamination.What Are Dry-Type Transformers?A dry-type transformer is a transformer that uses air or solid insulation materials instead of liquid oil for cooling and insulation. Because it does not contain flammable insulating fluid, it is especially suitable for indoor installations, public buildings, and areas with strict safety and environmental requirements.Benefits of Dry-Type Transformers1. Improved Safety and Environmental ProtectionOne of the main advantages of dry-type transformers is safety. Since they do not use oil or other flammable insulating liquids, the risk of oil leakage, spillage, and fire is greatly reduced.This makes dry-type transformers suitable for places with high fire-safety requirements, such as schools, hospitals, shopping centers, office buildings, data centers, and other public facilities.Dry-type transformers are also more environmentally friendly because they eliminate the risk of oil contamination caused by leakage. This helps reduce environmental impact and makes them a practical choice for modern power distribution systems.2. Low Maintenance and Operating CostsDry-type transformers require less maintenance than traditional oil-filled transformers. Since there is no insulating oil, there is no need for regular oil testing, oil replacement, oil filtration, or leakage repair.This reduces maintenance workload and helps lower the total operating cost over the transformer’s service life. For projects that require long-term stable operation with minimal maintenance, dry-type transformers offer a cost-effective solution.3. Suitable for Indoor InstallationDry-type transformers are ideal for indoor applications where space, safety, and ventilation are important considerations.Because they do not contain oil, they can be installed in enclosed or semi-enclosed areas without the same level of fire protection, oil containment, or leakage prevention measures required for oil-filled transformers.This makes them suitable for basements, high-rise buildings, commercial complexes, factories, hospitals, schools, railway stations, airports, and subway systems.4. Reliable Performance in Harsh ConditionsAlthough dry-type transformers are commonly used indoors, they can also perform reliably in demanding environments when properly designed.They are built with high-quality insulation materials and strong electrical-grade components, allowing them to operate under conditions involving temperature variation, humidity, dust, and industrial pollution.Because of this, dry-type transformers are often used in industrial plants, mining facilities, manufacturing workshops, renewable energy plants, and other environments where equipment may face harsh operating conditions.5. Lower Noise LevelsNoise control is important in residential, commercial, and public environments. Dry-type transformers usually produce lower noise levels compared with many liquid-filled transformers, making them more suitable for noise-sensitive locations.They are commonly used in offices, schools, hospitals, apartment buildings, hotels, and commercial facilities where stable power distribution is required without excessive operating noise.6. Efficient Power DistributionEfficiency is an important factor when selecting transformers, especially for projects focused on energy saving and long-term operating cost reduction.Dry-type transformers provide reliable power distribution with low energy losses. Their design supports stable voltage regulation and reliable current transmission under different load conditions.This helps improve energy efficiency, reduce operating costs, and support stable power supply in commercial, industrial, and public power systems.Common Applications of Dry-Type TransformersCommercial buildings and office buildingsIndustrial plants and manufacturing facilitiesSchools, colleges, universities, and healthcare facilitiesRenewable energy plants, including solar and wind power projectsInfrastructure projects such as railways, airports, subway systems, and public transportation facilitiesResidential buildings, hotels, shopping malls, and data centersWhy Use a Dry-Type Transformer?Dry-type transformers are used because they provide a safer, cleaner, and lower-maintenance power distribution solution. They are especially valuable in locations where fire safety, environmental protection, indoor installation, low noise, and reduced maintenance are important.Compared with oil-filled transformers, dry-type transformers reduce the risks of oil leakage and fire, simplify maintenance, and support efficient power distribution in many different environments.endDry-type transformers offer significant advantages in safety, environmental protection, maintenance, installation flexibility, noise control, and operating efficiency. They are widely used in commercial, industrial, residential, public, and renewable energy applications.For projects that require reliable power distribution with lower fire risk, reduced maintenance, and better environmental performance, dry-type transformers are an effective and practical solution.

A: What Is a Composite Hollow Insulator?A composite hollow insulator is an electrical insulating component used in high-voltage power equipment. It is designed with a hollow internal structure and is commonly used as the external insulation and mechanical support for equipment such as transformers, surge arresters, circuit breakers, instrument transformers, bushings, and GIS equipment.Compared with traditional porcelain hollow insulators, composite hollow insulators are lighter, safer, more resistant to pollution, and better suited for harsh outdoor environments. Because of these advantages, they are increasingly used in modern substations and high-voltage power systems.Structure of a Composite Hollow InsulatorA composite hollow insulator is usually made of three main parts: an FRP tube, silicone rubber housing, and end fittings.1. FRP Hollow TubeThe FRP hollow tube is the main mechanical support structure of the composite hollow insulator. FRP means fiberglass reinforced plastic. This tube provides high mechanical strength, pressure resistance, bending resistance, and structural stability.Because the tube is hollow, it can be used as an insulating enclosure for internal components or as part of high-voltage equipment that requires an insulated passage or chamber.2. Silicone Rubber HousingThe outer housing is usually made of silicone rubber. It protects the FRP tube from ultraviolet radiation, moisture, pollution, salt fog, chemical contamination, and other environmental factors.Silicone rubber also has excellent hydrophobic properties. This means the surface can repel water and prevent the formation of continuous conductive water films. As a result, composite hollow insulators can reduce leakage current and lower the risk of flashover in wet, coastal, or polluted environments.3. End FittingsMetal end fittings are installed at both ends of the composite hollow insulator. They provide mechanical connection, sealing, and installation support for the equipment.The quality of the end fittings and sealing structure is very important. Good sealing helps prevent moisture from entering the internal structure and ensures long-term electrical and mechanical reliability.Main Advantages of Composite Hollow Insulators1. Lightweight DesignComposite hollow insulators are much lighter than porcelain hollow insulators. Their lightweight structure makes transportation, handling, and installation easier.This is especially useful for large high-voltage equipment, substations, remote project sites, and installation environments where lifting capacity is limited.2. High Safety PerformancePorcelain hollow insulators may break or shatter under strong mechanical impact, internal pressure, earthquake stress, or transportation damage. Broken porcelain fragments can create safety risks for workers and nearby equipment.Composite hollow insulators do not shatter like porcelain. Their non-brittle structure improves safety and reduces the risk of explosive failure.3. Excellent Pollution ResistanceThe silicone rubber surface of composite hollow insulators provides strong pollution resistance. In coastal areas, industrial zones, deserts, and high-humidity environments, pollution and moisture can increase the risk of flashover.Because silicone rubber has hydrophobic properties, composite hollow insulators can maintain better insulation performance under polluted and wet conditions.4. Strong Mechanical PerformanceThe FRP hollow tube provides excellent mechanical strength and structural stability. Composite hollow insulators can withstand bending loads, internal pressure, external mechanical stress, and environmental forces such as wind and seismic vibration.This makes them suitable for high-voltage equipment that requires both electrical insulation and mechanical support.5. Better Seismic PerformanceComposite hollow insulators have better flexibility and impact resistance than porcelain hollow insulators. In earthquake-prone areas, their lighter weight and non-brittle structure help reduce the risk of equipment damage.For substations located in seismic zones, composite hollow insulators are often a safer and more reliable option.6. Lower Maintenance RequirementsBecause of their hydrophobic surface and strong environmental resistance, composite hollow insulators usually require less cleaning and maintenance than porcelain insulators.This can reduce maintenance costs, inspection frequency, and outage risks over the service life of the equipment.7. Suitable for Harsh Outdoor EnvironmentsComposite hollow insulators are suitable for coastal regions, polluted industrial areas, high-altitude areas, deserts, high-humidity zones, and other demanding environments.Their resistance to UV radiation, moisture, salt fog, pollution, and temperature changes helps ensure stable long-term performance.Applications of Composite Hollow InsulatorsComposite hollow insulators are widely used in different types of high-voltage electrical equipment.1. Surge ArrestersComposite hollow insulators are commonly used as external insulating housings for high-voltage surge arresters. They provide insulation, mechanical protection, and environmental resistance.2. Transformer BushingsIn transformer bushings, composite hollow insulators provide an insulated passage for conductors to pass through grounded transformer tanks or enclosures.3. Circuit BreakersComposite hollow insulators are used in high-voltage circuit breakers to provide insulation and support for internal and external components.4. Instrument TransformersCurrent transformers and voltage transformers can use composite hollow insulators as insulating housings to ensure safe and stable operation.5. GIS and Substation EquipmentComposite hollow insulators are used in GIS equipment, cable terminations, wall bushings, and other substation applications where high-voltage insulation and compact design are required.Composite Hollow Insulator vs. Porcelain Hollow InsulatorThe main difference between composite hollow insulators and porcelain hollow insulators lies in their material and safety performance.Porcelain hollow insulators have good insulation performance and long operating history, but they are heavy and brittle. They may crack or shatter under mechanical impact, transportation stress, seismic force, or internal failure.Composite hollow insulators are lighter, safer, and more resistant to pollution. They do not shatter like porcelain and can provide better performance in harsh environments. This makes them increasingly popular in modern high-voltage power equipment.Why Are Composite Hollow Insulators Important?Composite hollow insulators play an important role in improving the safety, reliability, and efficiency of modern power systems. As substations and high-voltage equipment operate under more demanding environmental and mechanical conditions, insulation components must provide not only electrical performance but also mechanical strength, environmental resistance, and long-term safety.Composite hollow insulators meet these requirements by combining an FRP hollow tube, silicone rubber housing, and reliable end fittings into one integrated structure.ConclusionA composite hollow insulator is a high-voltage insulating component with a hollow FRP tube, silicone rubber housing, and metal end fittings. It is widely used in surge arresters, transformer bushings, circuit breakers, instrument transformers, GIS equipment, and substations.Compared with porcelain hollow insulators, composite hollow insulators offer lightweight design, improved safety, excellent pollution resistance, strong mechanical performance, better seismic resistance, and lower maintenance requirements.For modern power transmission, distribution, and substation equipment, composite hollow insulators provide a reliable and cost-effective insulation solution, especially in harsh outdoor environments and high-voltage applications.
