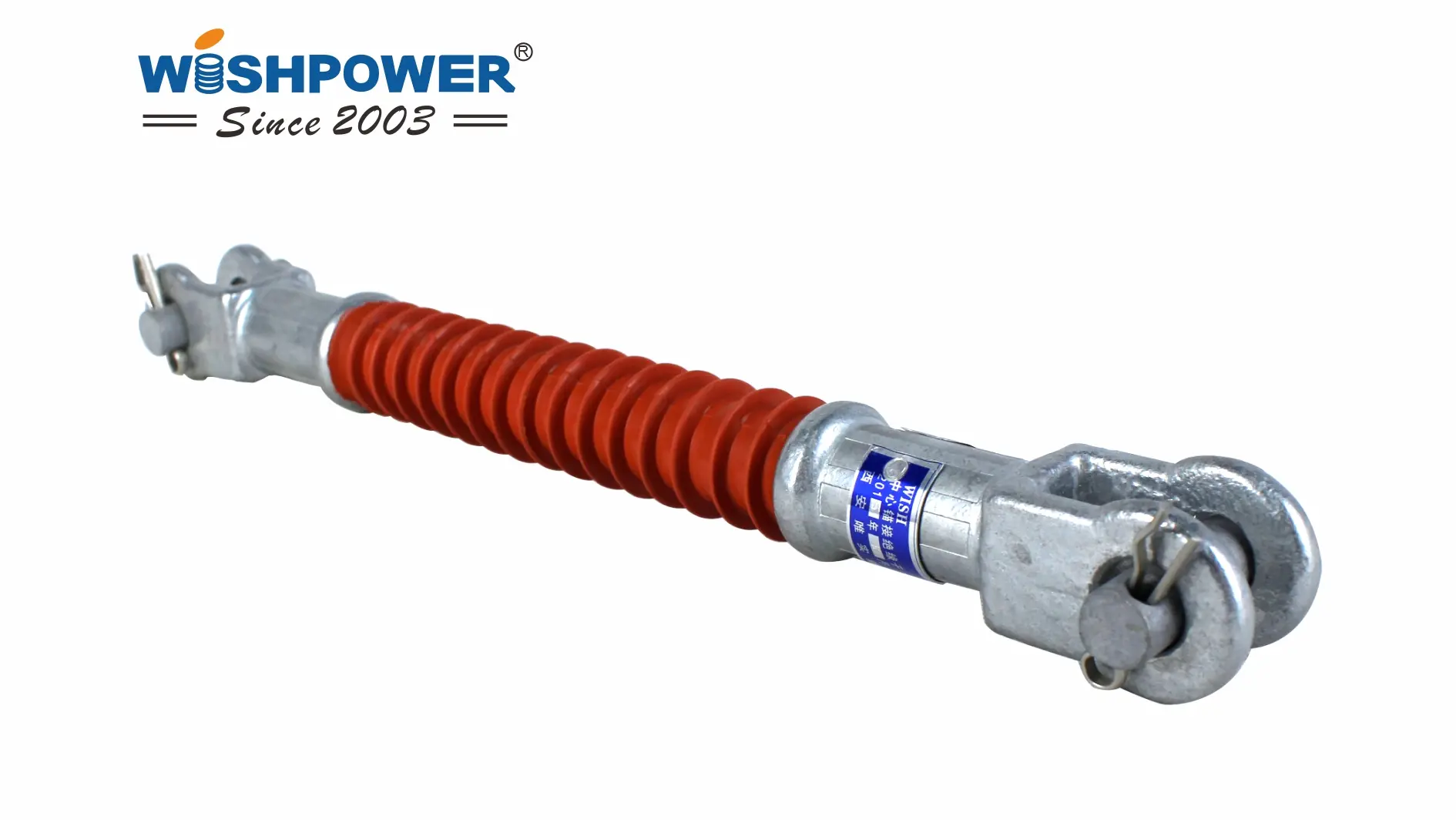

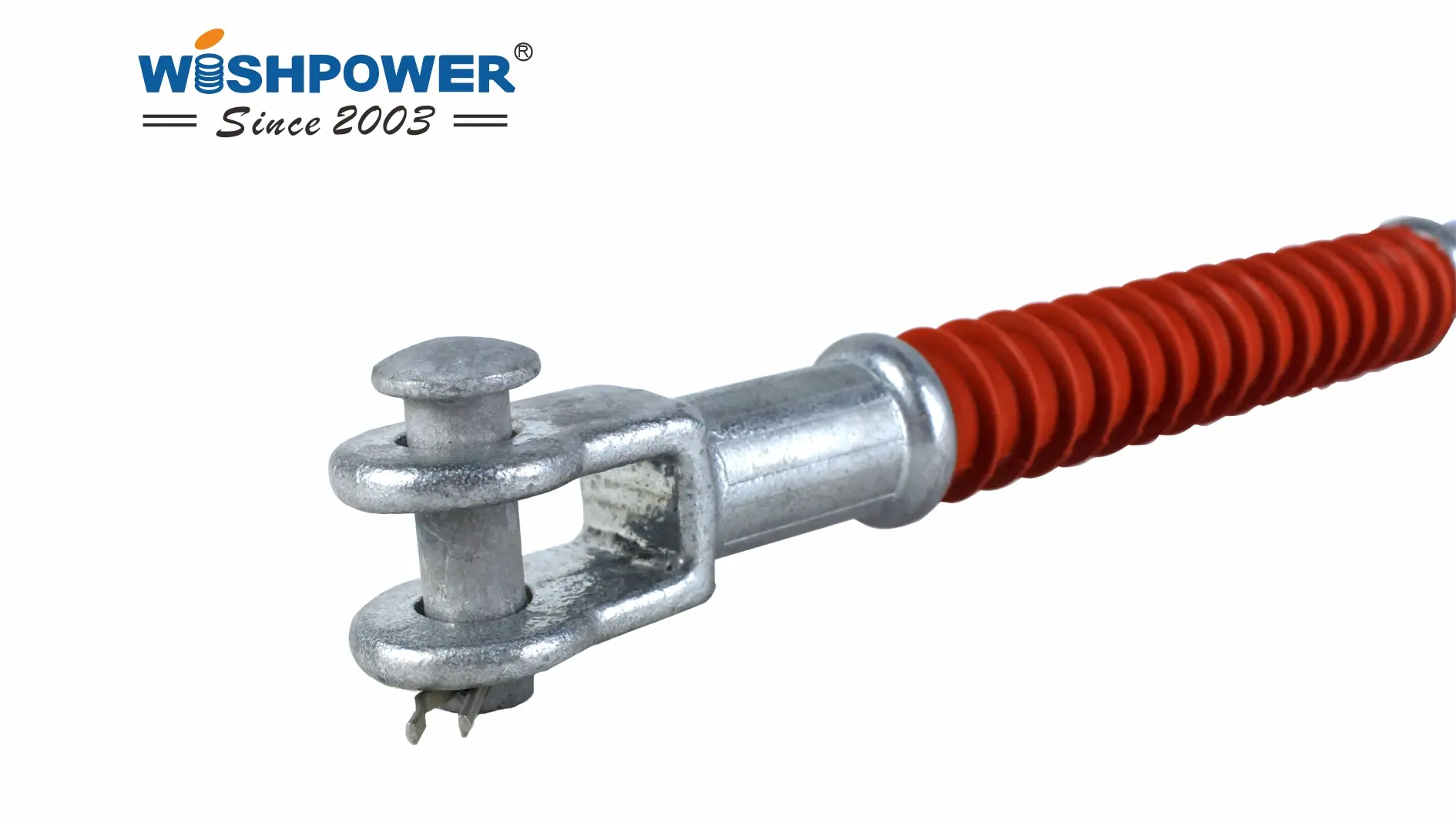

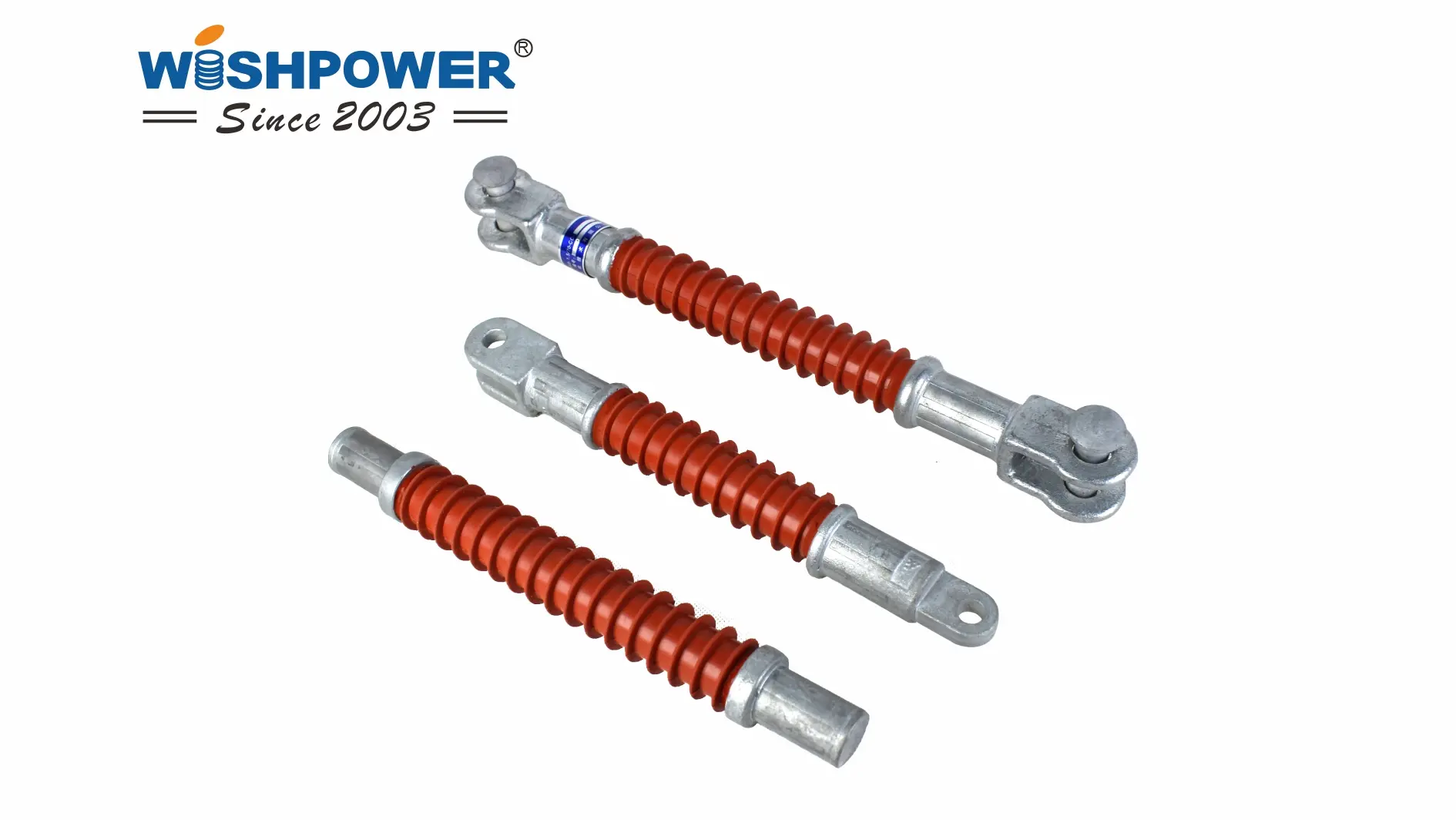

Center Anchor Insulator 350(500) | Wishpower Composite Insulator

A: Transformer bushings are important components that provide an insulated passage for electrical conductors to pass through a grounded barrier, such as a transformer tank or casing. They play a vital role in the safe and efficient transmission and distribution of electricity by preventing electrical faults, reducing leakage current, and protecting the transformer from insulation failure.Why Do Transformers Need Bushings?The main purpose of a transformer bushing is to allow a high-voltage conductor to pass safely through the grounded enclosure of the transformer.Transformers are usually installed in metal tanks or cabinets, and these metal enclosures must be grounded for safety. However, the conductors carrying current need to enter or exit the transformer without making electrical contact with the grounded casing. Bushings provide the required electrical insulation between the live conductor and the grounded transformer body.Without proper bushings, current may leak to the grounded enclosure, which can cause short circuits, equipment damage, insulation failure, or serious safety risks.Types of Transformer Bushings1. Porcelain BushingsPorcelain bushings have been used in transformers for many years because of their good insulation performance and mechanical strength. They are made from porcelain ceramic materials and are commonly used in high-voltage applications.However, porcelain bushings are relatively heavy and brittle. They may crack or shatter under strong mechanical impact, severe weather conditions, high wind loads, or seismic forces. This can increase safety risks and maintenance difficulty in harsh operating environments.2. Resin Impregnated Paper BushingsResin Impregnated Paper bushings, also known as RIP bushings, use resin-impregnated paper as the main insulating material. They provide good dielectric strength and improved partial discharge performance compared with some traditional designs.RIP bushings are usually lighter than porcelain bushings and can offer stable electrical performance. However, their performance may still be affected by extreme climate conditions, moisture, temperature changes, or harsh outdoor environments if not properly designed and protected.3. Composite BushingsComposite bushings are a modern type of transformer bushing. They usually use an epoxy fiberglass core or similar reinforced insulating structure, combined with a silicone rubber outer sheath.This structure provides excellent electrical insulation, strong mechanical performance, and good resistance to environmental stress. Composite bushings are lighter than traditional porcelain bushings and are less likely to shatter. They are especially suitable for harsh environments such as coastal areas, polluted industrial zones, high-humidity regions, and earthquake-prone areas.Advantages of Composite Bushings1. Enhanced Durability and SafetyComposite bushings provide strong mechanical performance and are less likely to fail in a dangerous manner. Unlike porcelain bushings, which may shatter into sharp fragments under mechanical shock, composite bushings are designed to withstand impact and stress without creating the same level of safety hazard.This improves safety for personnel, nearby equipment, and transformer operation.2. Lightweight and Easier InstallationComposite bushings are lighter than traditional porcelain bushings. Their reduced weight makes transportation, handling, lifting, and installation easier.For large-scale transformer projects, this can help reduce labor intensity, shorten installation time, and lower overall project costs.3. Excellent Environmental ResistanceThe silicone rubber outer sheath of composite bushings provides excellent resistance to ultraviolet radiation, pollution, moisture, salt fog, and harsh weather conditions.Silicone rubber also has strong hydrophobic properties. It helps prevent the formation of continuous conductive water films on the surface, reducing leakage current and lowering the risk of flashover in wet or polluted environments.4. Lower Maintenance RequirementsComposite bushings generally require less maintenance than traditional porcelain bushings. Their resistance to pollution, weathering, and environmental degradation helps maintain stable performance over time.Lower maintenance requirements can reduce operating costs throughout the transformer’s service life.Future Trends of Composite BushingsThe use of composite bushings is expected to increase as power utilities and transformer manufacturers look for safer, lighter, and more reliable electrical components.As modern power grids operate under more demanding conditions, including coastal environments, polluted areas, high seismic zones, and high-voltage applications, the advantages of composite bushings are becoming more important.With continuous progress in material science and manufacturing technology, composite bushings are expected to achieve better electrical performance, stronger mechanical reliability, longer service life, and improved cost competitiveness in future transformer applications.What Is a Bushing in a Transformer?A transformer bushing is an insulating component that allows high-voltage conductors to pass safely through the grounded transformer enclosure. It provides electrical insulation, mechanical support, and protection against leakage current and flashover.EndTransformer bushings are essential for the safe and reliable operation of power transformers. Porcelain bushings have been widely used for many years because of their proven insulation performance, but they also have limitations such as heavy weight, brittleness, and higher maintenance risks.Composite bushings provide important advantages in durability, safety, environmental resistance, lightweight installation, and reduced maintenance. As the power industry continues to focus on reliability, safety, and lifecycle cost, composite bushings are becoming an increasingly practical solution for modern transformer applications.

A: Windproof Insulators vs. Wind Deflection Insulators in Power TransmissionIn power transmission, selecting the right insulator is crucial, especially in regions with challenging wind conditions. Although Windproof Insulators and Wind Deflection Insulators may seem similar, they serve different purposes in managing the effects of wind on power lines.What Are Windproof Insulators?Windproof Insulators are designed to resist the force exerted by wind on power line structures, helping ensure stable and reliable line operation in high-wind environments.Design and FunctionalityThese insulators usually feature a streamlined design that reduces wind resistance and minimizes the surface area exposed to wind. Made from materials with high tensile strength, Windproof Insulators are built to withstand the mechanical stress caused by conductor weight and additional wind loads. Their primary function is to maintain electrical clearance and help prevent flashover, even under significant wind pressure.ApplicationsWindproof Insulators are ideal for regions with consistently strong winds, such as coastal areas, open plains, and exposed transmission corridors. In these environments, power lines are constantly affected by wind pressure, and Windproof Insulators help improve the stability and reliability of the transmission system.What Are Wind Deflection Insulators?Wind Deflection Insulators are designed to redirect or control wind-related forces, reducing conductor movement and helping prevent problems such as galloping, swinging, or excessive vibration.Design and FunctionalityThese insulators often use an aerodynamic structure and may work together with components such as dampers to control conductor oscillation. Their main purpose is to prevent conductors from being displaced beyond a safe range by wind, where they may come into contact with other structures, fittings, or conductors, potentially causing mechanical damage or electrical flashover.ApplicationsWind Deflection Insulators are most effective in areas where wind velocity and direction change frequently. They help reduce conductor vibration and movement, improving conductor stability and supporting the long-term reliability of the transmission system.Key Differences Between Windproof Insulators and Wind Deflection InsulatorsObjective: Windproof Insulators focus on resisting direct wind forces, while Wind Deflection Insulators are designed to manage, redirect, and control wind-induced conductor movement.Design Focus: Windproof Insulators prioritize mechanical strength and wind resistance, while Wind Deflection Insulators emphasize aerodynamic performance and conductor stability.Ideal Conditions: Windproof Insulators are suitable for areas with consistent, strong winds, while Wind Deflection Insulators are more effective in regions with variable, gusty, or turbulent wind conditions.How to Choose Between Windproof Insulators and Wind Deflection InsulatorsChoosing between Windproof Insulators and Wind Deflection Insulators depends on the wind conditions at the installation site. Windproof Insulators provide strong resistance against direct wind loads, making them suitable for consistently windy environments. Wind Deflection Insulators, on the other hand, are designed to manage conductor movement caused by variable wind speed and direction, helping improve the durability and safety of power transmission structures.Understanding the difference between Windproof Insulators and Wind Deflection Insulators helps engineers and utilities select the right solution for specific operating environments. By choosing the appropriate insulator type according to local wind conditions, power transmission systems can achieve better stability, improved safety, and higher long-term reliability.

A: High-voltage composite insulators are increasingly used in transmission lines and substations, improving the performance, reliability, and safety of modern power infrastructure. Compared with traditional porcelain or glass insulators, composite insulators offer advantages such as lighter weight, higher pollution resistance, easier installation, and better performance in harsh environments.What Are Composite Insulators?Composite insulators, also known as polymer insulators, are electrical insulators made from a combination of materials. They usually consist of a fiberglass reinforced core, a polymer housing made of silicone rubber or EPDM, and metal end fittings.The fiberglass rod is the main load-bearing component of the composite insulator. It provides high mechanical strength and tensile resistance. The outer polymer housing provides electrical insulation and protects the internal core from environmental factors such as moisture, ultraviolet radiation, pollution, and chemical contamination. The metal end fittings are connected to the fiberglass core and provide the mechanical interface between the insulator, conductor, and tower structure.Composite insulators are different from porcelain and glass insulators because they are lighter, more flexible, and more suitable for harsh operating conditions and high-voltage applications.Evolution of Composite InsulatorsComposite insulators are relatively new compared with traditional porcelain and glass insulators. Their development began in the middle of the 20th century as power systems required lighter, safer, and more pollution-resistant insulation solutions.Porcelain insulators have been widely used for many years and have proven durability. However, they are heavy, brittle, and may break under mechanical impact or transportation stress. They are also vulnerable to pollution accumulation on the surface, which can increase the risk of flashover.Glass insulators also have good insulation performance and can show visible signs of damage when broken, but they are still relatively heavy and may face similar contamination problems in polluted or coastal environments.Composite insulators were developed to overcome these limitations. By combining a high-strength fiberglass core with a protective polymer housing, composite insulators provide strong mechanical performance, excellent electrical insulation, lower weight, and better resistance to pollution and weathering.Main Advantages of Composite Insulators1. Lightweight and Easy to HandleComposite insulators are much lighter than porcelain or glass insulators. This makes transportation, handling, installation, and maintenance easier. Their lower weight also reduces the mechanical load on transmission towers, crossarms, and supporting structures, which may help reduce construction and installation costs.2. High Mechanical StrengthThe fiberglass reinforced core of a composite insulator provides excellent tensile strength and mechanical performance. This makes composite insulators suitable for transmission lines and substations that require high mechanical reliability, especially in areas affected by strong wind, ice, snow, vibration, or heavy conductor loads.3. Strong Environmental ResistanceThe polymer housing of composite insulators offers excellent resistance to ultraviolet radiation, moisture, weathering, and chemical contamination. This helps protect the internal fiberglass core and ensures long-term electrical and mechanical performance, even in harsh environments such as coastal regions, industrial areas, deserts, and polluted zones.4. Hydrophobic SurfaceSilicone rubber composite insulators have excellent hydrophobic properties, meaning their surface repels water. This helps reduce the formation of continuous conductive water films on the insulator surface, lowering the risk of leakage current and flashover.The hydrophobic surface also supports a self-cleaning effect. Water droplets can roll off the surface and carry away dust, salt, and other contaminants, helping the insulator maintain stable electrical performance in wet or polluted environments.5. Improved SafetyComposite insulators are less brittle than porcelain or glass insulators. They do not shatter easily, which reduces the risk of falling fragments and improves safety during installation, operation, and maintenance.In addition, the polymer materials used in composite insulators provide good resistance to tracking and erosion, helping improve operational safety in high-voltage applications.Applications of Composite InsulatorsComposite insulators are widely used in high-voltage transmission lines, distribution systems, substations, railway electrification systems, and power equipment. They are especially suitable for areas with heavy pollution, high humidity, salt fog, strong wind, large temperature differences, or limited installation space.Because of their lightweight structure and reliable performance, composite insulators are also commonly used in upgrading and replacing older porcelain or glass insulators in existing power networks.Composite insulators represent an important development in electrical insulation technology. With advantages such as lightweight design, high mechanical strength, strong environmental resistance, hydrophobic surface performance, and improved safety, they have become a preferred solution for many modern power transmission and distribution systems.As power grids continue to develop toward higher voltage levels, greater reliability, and cleaner energy transmission, composite insulators will play an increasingly important role in the future of power infrastructure.

A: Transformer bushings are essential insulating components used in power transformers. Their main function is to allow conductors to pass safely through the grounded transformer tank while maintaining electrical insulation and mechanical support.In power transmission and distribution systems, transformer bushings help prevent current leakage, flashover, short circuits, and equipment failure. Because transformers operate under different voltage levels, environmental conditions, and mechanical requirements, several types of transformer bushings are used in the power industry.What Is a Transformer Bushing?A transformer bushing is an insulated device that carries electrical current through the grounded enclosure of a transformer. It provides a safe passage for high-voltage or low-voltage conductors while isolating them from the transformer tank.A reliable transformer bushing must provide good electrical insulation, mechanical strength, thermal stability, sealing performance, and resistance to environmental stress.Main Types of Transformer Bushings1. Porcelain Transformer BushingsPorcelain transformer bushings are one of the traditional and widely used types of transformer bushings. They use porcelain as the main external insulating material.Porcelain bushings have good electrical insulation performance, strong weather resistance, and a long history of use in power systems. They are commonly used in distribution transformers, power transformers, and substation equipment.However, porcelain bushings are relatively heavy and brittle. They may crack or shatter under mechanical impact, transportation damage, seismic stress, or severe weather conditions. In polluted or coastal environments, their surface may require regular cleaning to reduce the risk of flashover.2. Oil-Impregnated Paper BushingsOil-impregnated paper bushings, also known as OIP bushings, are commonly used in high-voltage power transformers.The main insulation structure of an OIP bushing is made of paper impregnated with insulating oil. This design provides good dielectric strength and is suitable for high-voltage applications.OIP bushings have been widely used for many years and can provide reliable electrical performance when properly maintained. However, because they contain insulating oil, they may have risks related to oil leakage, aging, moisture ingress, and maintenance requirements.Regular inspection and oil condition monitoring are important for ensuring the long-term reliability of OIP transformer bushings.3. Resin-Impregnated Paper BushingsResin-impregnated paper bushings, also known as RIP bushings, use paper impregnated with epoxy resin as the main insulating material.Compared with OIP bushings, RIP bushings do not require liquid oil as the main insulating medium. This makes them safer, cleaner, and more environmentally friendly. RIP bushings also have good partial discharge performance and strong dielectric properties.They are widely used in power transformers, converter transformers, and high-voltage electrical equipment. Their dry-type insulation structure helps reduce the risk of oil leakage and fire hazards.4. Resin-Impregnated Synthetic BushingsResin-impregnated synthetic bushings, also called RIS bushings, use synthetic fiber material impregnated with resin as the insulation structure.Compared with traditional paper-based insulation, synthetic materials may offer better moisture resistance and improved aging performance. RIS bushings are often used in modern high-voltage transformer applications where reliability, safety, and low maintenance are important.They are suitable for projects that require dry insulation, stable electrical performance, and reduced environmental risk.5. Composite Transformer BushingsComposite transformer bushings use a composite external housing, usually made with a fiberglass reinforced structure and silicone rubber outer sheath.The silicone rubber housing provides excellent hydrophobic performance, pollution resistance, UV resistance, and weather resistance. Compared with porcelain bushings, composite bushings are lighter and safer because they do not shatter under mechanical impact.Composite bushings are especially suitable for coastal areas, polluted industrial zones, high-humidity regions, earthquake-prone areas, and harsh outdoor environments.They are increasingly used in modern power transformers because of their lightweight design, high safety performance, lower maintenance requirements, and strong environmental resistance.6. Condenser BushingsCondenser bushings are designed with capacitive grading layers inside the insulation structure. These layers help distribute the electric field more evenly and reduce electrical stress concentration.Condenser bushings are commonly used in high-voltage and extra-high-voltage transformers. They can be made with OIP, RIP, or other insulation technologies.The main advantage of condenser bushings is their ability to control electric field distribution, which improves insulation reliability and reduces the risk of partial discharge.7. Non-Condenser BushingsNon-condenser bushings have a simpler insulation structure and do not use capacitive grading layers. They are commonly used in lower-voltage transformers and distribution transformers.These bushings are generally more economical and easier to manufacture. However, they are not suitable for very high-voltage applications where electric field control is critical.8. Dry-Type Transformer BushingsDry-type transformer bushings are used in dry-type transformers and other electrical equipment where liquid insulation is not preferred.They are designed to provide safe insulation without the use of insulating oil. Dry-type bushings are suitable for indoor installations, commercial buildings, public facilities, renewable energy systems, and areas with strict fire safety requirements.Because they do not contain oil, they help reduce fire risk, leakage risk, and environmental concerns.Comparison of Different Transformer Bushing TypesPorcelain bushings are durable and widely used, but they are heavy and brittle.OIP bushings are suitable for high-voltage transformers, but they require oil maintenance and have leakage risks.RIP bushings provide dry insulation, good dielectric performance, and lower fire risk.RIS bushings offer improved moisture resistance and modern dry insulation performance.Composite bushings are lightweight, pollution-resistant, and safer in harsh environments.Condenser bushings are suitable for high-voltage applications requiring electric field control.Non-condenser bushings are more suitable for lower-voltage applications.Dry-type bushings are preferred in indoor and fire-sensitive environments.How to Choose the Right Transformer BushingChoosing the right transformer bushing depends on several factors, including voltage level, transformer type, installation environment, pollution level, mechanical load, maintenance requirements, and safety standards.For high-voltage power transformers, condenser bushings, OIP bushings, RIP bushings, and composite bushings are commonly used.For polluted, coastal, or earthquake-prone areas, composite transformer bushings are often a better choice because of their lightweight structure, hydrophobic surface, and non-shattering safety performance.For indoor or fire-sensitive applications, dry-type bushings or RIP bushings may be more suitable.For distribution transformers and lower-voltage systems, porcelain or non-condenser bushings may still be widely used because of their cost-effectiveness.Why Transformer Bushing Selection MattersTransformer bushings are critical to transformer safety and reliability. A bushing failure can cause flashover, oil leakage, transformer outage, fire risk, or serious damage to power equipment.Proper bushing selection helps improve transformer reliability, reduce maintenance costs, extend service life, and ensure safe operation in different power system environments.ConclusionTransformer bushings are available in several types, including porcelain bushings, oil-impregnated paper bushings, resin-impregnated paper bushings, resin-impregnated synthetic bushings, composite bushings, condenser bushings, non-condenser bushings, and dry-type bushings.Each type has its own advantages and application range. Porcelain bushings are traditional and widely used, OIP and RIP bushings are common in high-voltage transformers, while composite bushings provide excellent safety, pollution resistance, and environmental performance.Understanding the different types of transformer bushings helps engineers, utilities, transformer manufacturers, and project buyers select the right insulation solution for reliable and safe power system operation.
